[08052010] - Wings

Got to attach the wings and tail to something ....










08/05/2009 - Make a start on the forward Fuselage

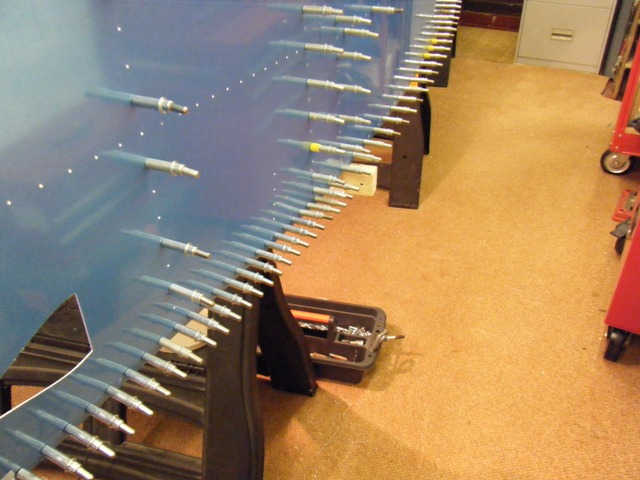

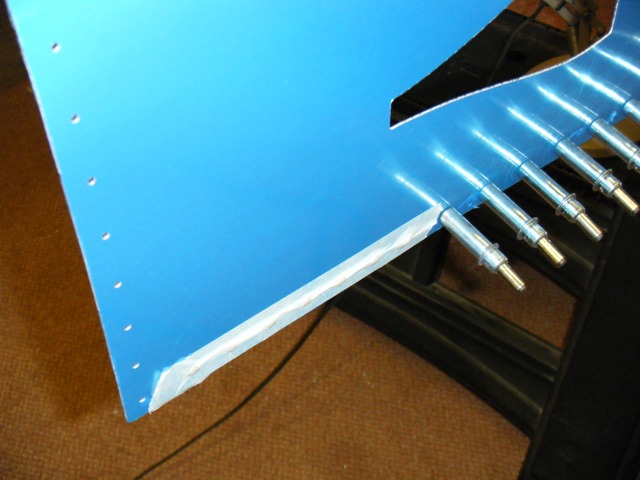

Drilling main longerons and adding short rivets to hold the skin as per the instructions

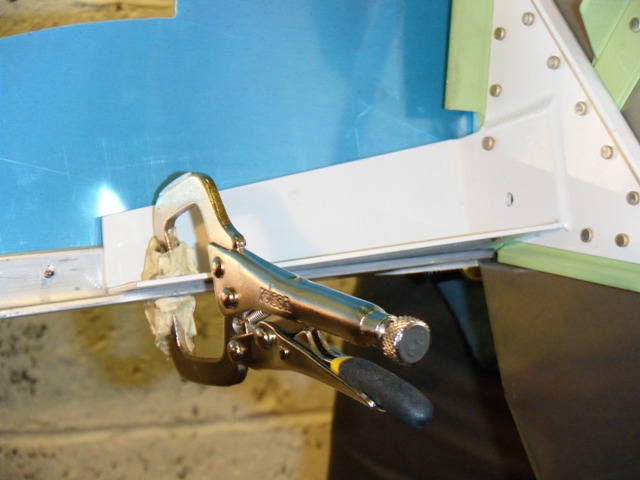

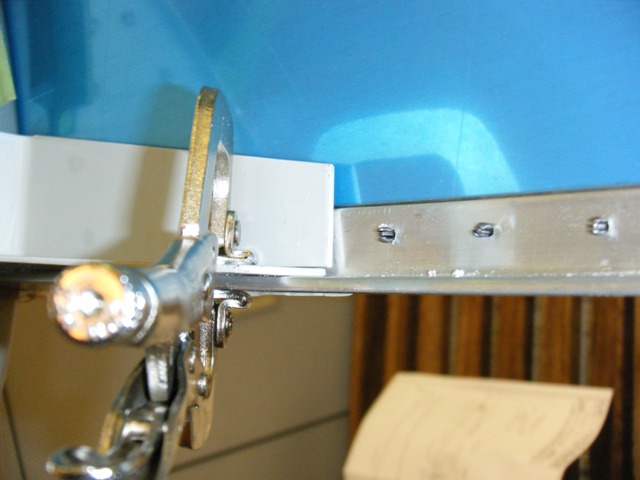

Making sure that the engine brackets align and fit to the longeron as required

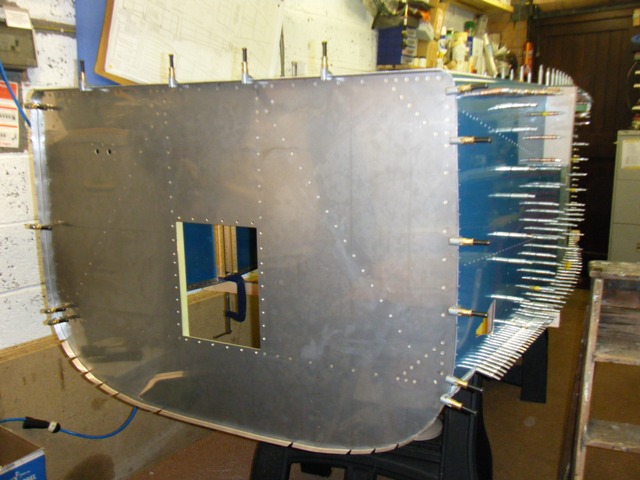

Measuring the 5/8" gap all the way around the firewall

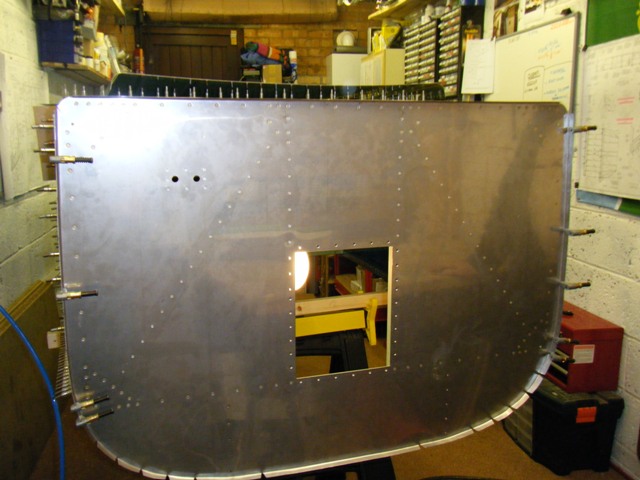

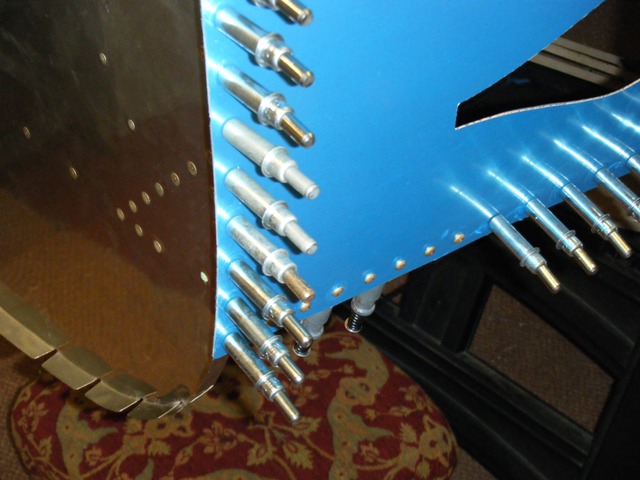

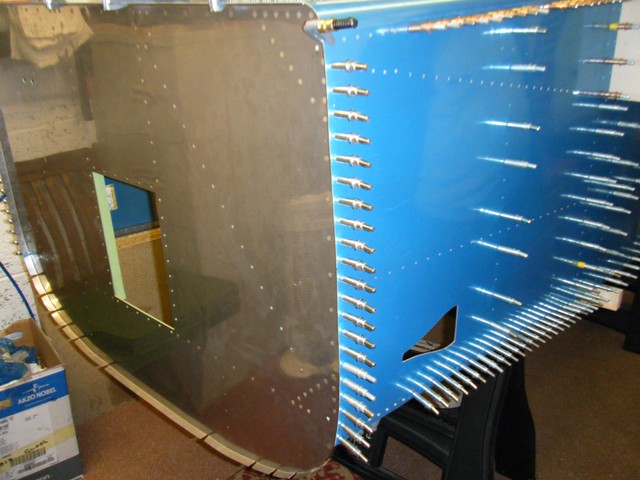

The match drilling through (use boelube) skin and steel firewall

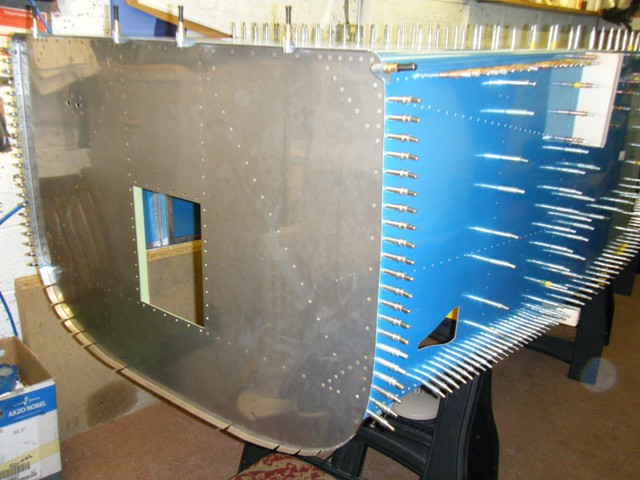

Tada





























Nothing more for today...
